Envirograf Intumescent Door Upgrade Kit

Intumescent Coating Kits to upgrade raised and fielded doors to fire-rated doors.

Minimum requirements for the door:

Rails/Styles thickness = 32mm

Panel thickness = 10mm

If your door is less that the requirements above then you need to use the Intumescent door upgrade kit DK1

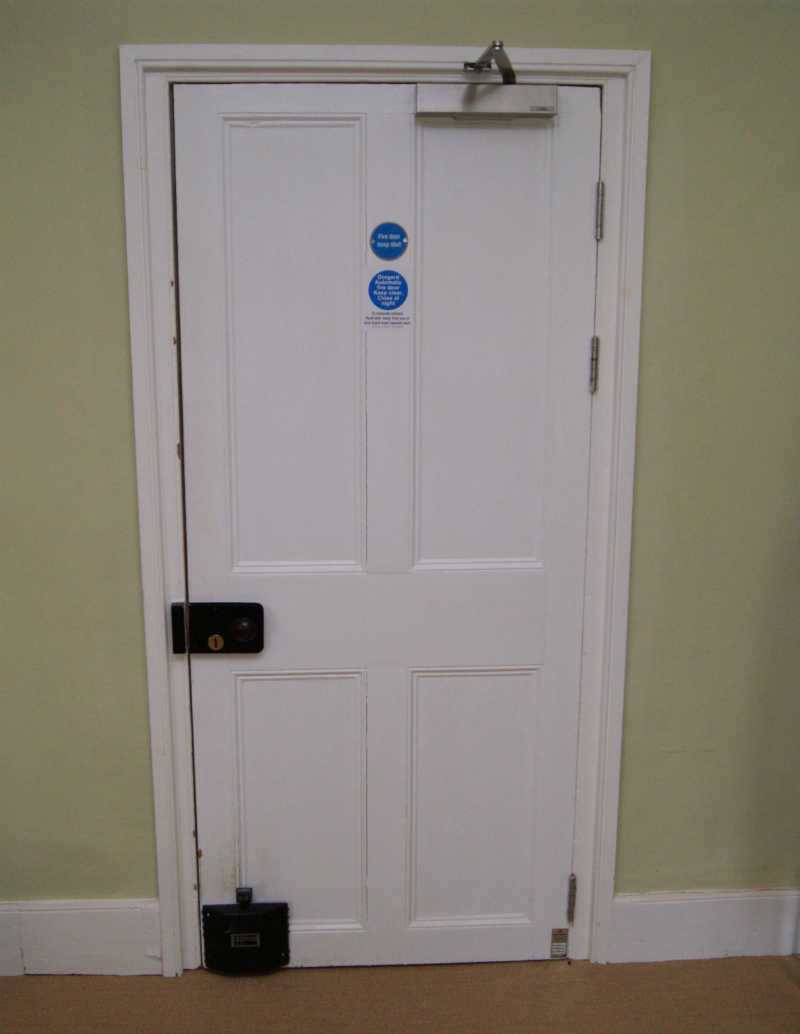

Intumescent door upgrade kit designed for upgrading Victorian/Georgian/Edwardian doors to 30 minutes fire doors. This is a clear or white intumescent coating system for upgrading doors and paneling to fire door status. Materials contained in each kit are enough to cover an area of 6m² (according to the size of the door, enough material to cover three to four sides of single doors). Only the risk side needs to be coated on room doors and both sides on doors leading onto corridors or at the top of stairs.

There is no need to remove any existing paints, varnish or gold leaf; this product can be applied directly over all previous coatings after normal surface washing. Fire tests have been carried out on specific panels and doors.

Available in clear or white as standard, with a range of finishes.

Because the coatings must be applied in a specific way in order to achieve the required fire ratings, please ensure you  read the application data supplied with the kit before using. Here, in-depth Application Instructions for the range can be found, including the recommended loading rate. The Technical Information summarises the recommended usage of the coatings and contents of the kits. COSHH data is also available on request.

Order References

Ref                     Colour        Finish

ES/RFC/WM      White          Matt

ES/RFC/WS       White          Satin

ES/RFC/WG       White         Gloss

ES/RFC/CM       Clear          Matt

ES/RFC/CS        Clear          Satin

ES/RFC/CG         Clear         Gloss

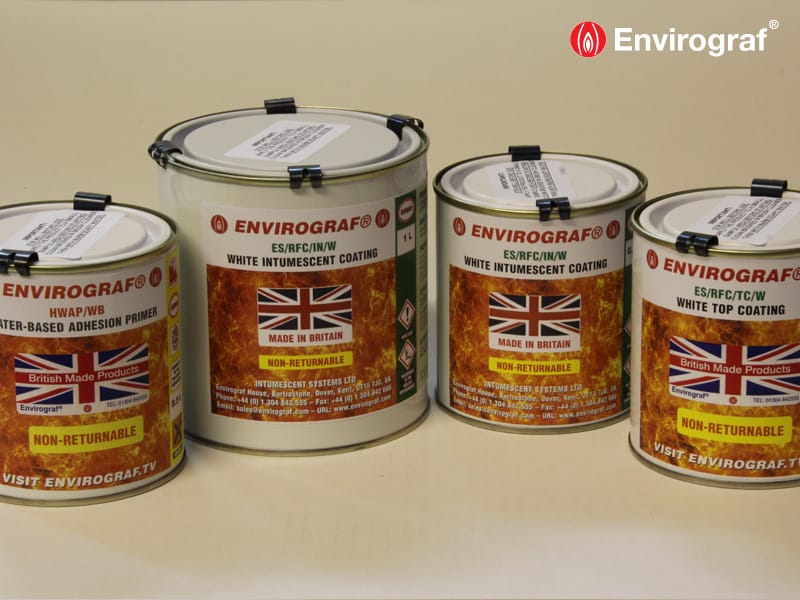

Each upgrade kit contains the following:

0.5 Litre HWAP primer.

1.5 Litre intumescent coating (either HW01 white intumescent, or HW02 clear intumescent).

0.5 Litre top coat (either Ultra White topcoat, or Enviroclear topcoat).

You may also be interested in Envirograf’s Intumescent Wood Filler.

IMPORTANT INFORMATION ON PURCHASING OF PASSIVE FIRE PROTECTION PRODUCTS NOTICE:

The information displayed about the products on this website is to be used for guidance ONLY, we advise that all customer contact our technical department to obtain a free no obligation specification and quotation before purchasing goods directly from the website.

Products purchased directly from our website without specification will NOT qualify for certification.

Please be aware that any negligence caused by failure to obtain the relevant advice, or availment of our specification and estimation service, will absolve International Passive Fire Ltd from any liability should Passive Fire Protection Products prepared, or used, by the purchaser, or any other parties, result in damage to property or human life, or for any monetary costs incurred due to incorrect usage.
