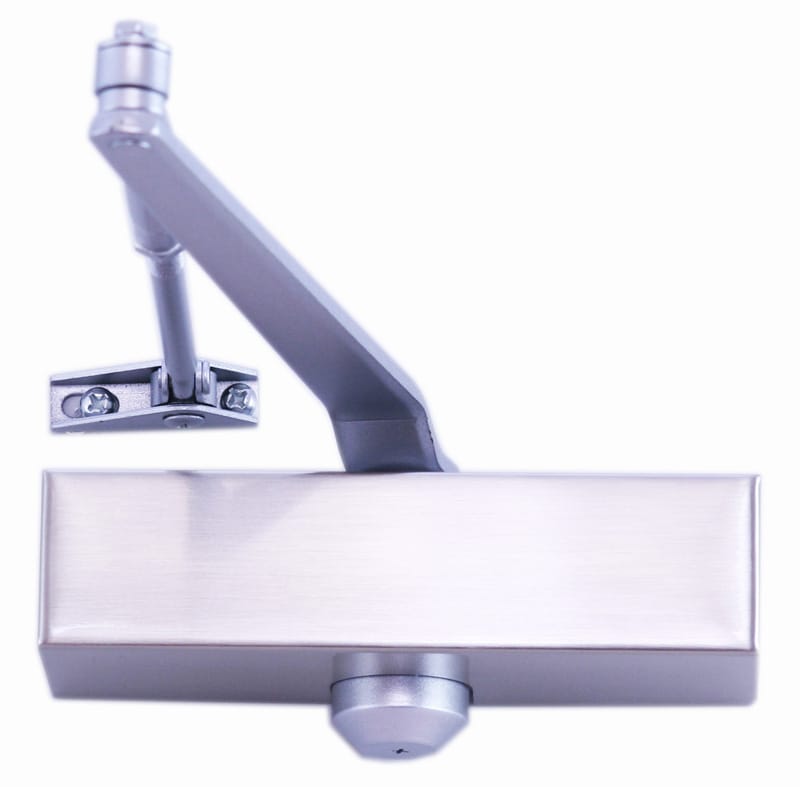

TS4.224 Door Closer

This Boss TS4.224 rack and pinion door closer has a closing force of EN Size – 3.

It is only suitable for doors under 950mm wide and 60kg in weight.

It can be installed as a regular or a parallel door closer.

You can adjust both the sweep speed and latch speed.

Furthermore, the power can be adjusted by position.

It comes with a power shoe bracket and a PA Bracket.

It opens at a 180 degree angle.

This Boss door closer has a high resistance to corrosion.

Standard colours: silver, plated PSS, Plated SSS and polished brass. Please contact us if another colour is required.

Certification and guarantees

This product is CE marked. Please view the CE Mark certificate in the data sheets tab above.

For peace of mind, this product comes with a 25 year guarantee.

The TS4.224 door closer has been Certifire approved, as per the certificate in the data sheets tab above.

It can be used on timber doors which have a fire rating of up to 120 minutes.

This product has been tested to 500,000 cycles.

Main application areas of the TS4.224 door closer

This Boss door closer is often installed in areas of general usage, such as:

• Offices
• Flat entrance doors
• Small warehouses
• Other general use areas where door closers are required

Product dimensions

This door closer measures:

220mm (length) x 59mm (width) x 42mm (depth)

The cover is in a semi-radius shape.

You are able to view the technical data sheet in the data sheet tab above.

Installation Instructions

Please view the installation instructions data sheet above, for details on installation.

For technical support, please contact us on 01752 690997.
