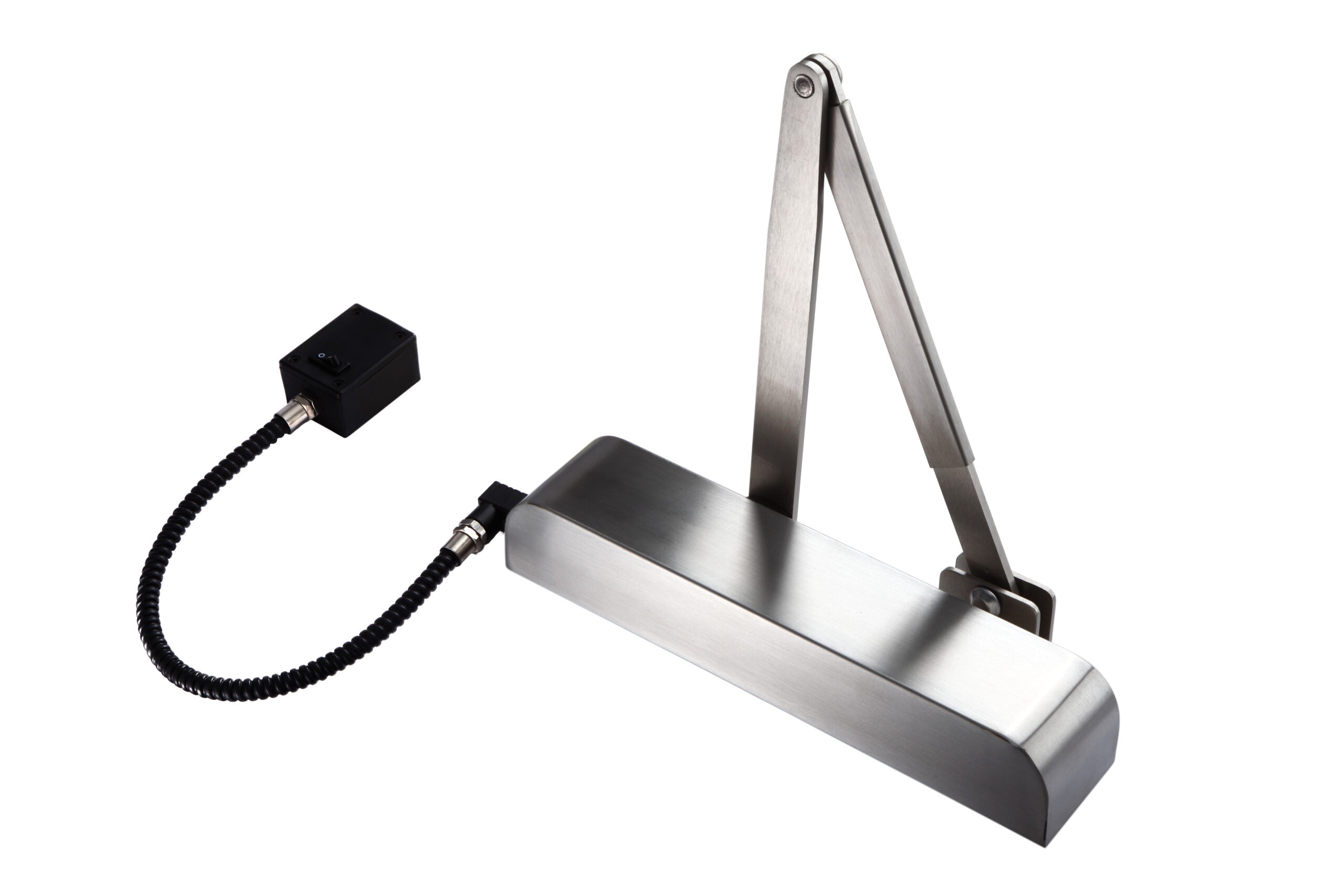

TS7004 Electromagnetic Door Closer – by Boss

TS7004 Electromagnetic Door Closers by Boss Door Controls are versatile in use, although are particularly suitable for doors in public spaces.

They come with a 2 year guarantee and can be fitted to doors under 1100mm wide and 80kg in weight.

TS7004 door closers have a closing force of EN Size 4.

Their sweep speed and latch speed can be adjusted.

Sizing

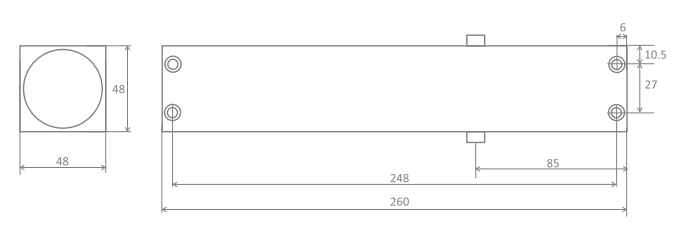

These door closers measure 260mm x 48mm x 48mm (length x width x depth)

They open at a 105 degree angle.

Please refer to the product image gallery above for more details on the product’s dimensions.

Testing & Installation Instructions

TS7004 electromagnetic door closers are CE marked against EN1155.

Fire tested to EN1634. These particular electromagnetic door closers can be applied to timber fire doors of up to 120 minutes fire resistance.

Certifire approval – please refer to CF5023 to see scope of approval.

The CE Marking and Certifire certificates, plus the installation instructions, can be accessed in the data sheets tab above.

BS8300 / Equalities Act / Approved Document “M”

Due to its hold-open and swing-free functions, it is suitable for applications where ease-of-access is needed.

Therefore, it complies with the Equalities Act.

Electrical Details:

Current Draw: 95 Milliamp

Voltage: 24v DC

Different product options available

The Boss TS7004 Electromagnetic Door Closer product can come with:

• A mounting plate
• An extra long loop
• Power supply units – 2 amp & 4 amp
• Either a semi-radius or square cover
• The following colours: silver, stainless steel, polished stainless steel, polished brass (as standard)
• Other bespoke colours available
• Default colour if not stated: silver

Please contact us if you require any additional extras.

For more details, please refer to the data sheet above, or contact our technical team on 01752 690997.
