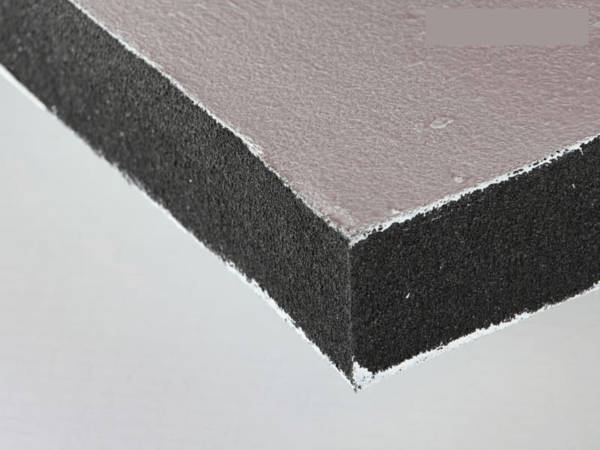

Envirograf Intumescent Coated Non-Fibrous Slabs

Advantages:

Due to its high density, it can be used for large openings in floors, walls and ceilings

Non-fibrous material is ideal for use in sterile areas or clean rooms

Ideal for use under raised flooring as a firebreak, providing 1-4 hours fire protection

Application Instructions:

Envirograf NF Slab is cut to suit the opening size and you cut around any services like a jigsaw, adhering each section or joint with the jointing compound.

Where services are PVC, i.e. Pipes and cables, Envirograf Wraps should be used, 50mm wraps for two-hour fire protection and 100mm wide wraps for four hour protection. The wraps can also be fitted around steel, copper and aluminium pipes to stop the pipes overheating and passing the heat from one side to the other of the fire barrier.

When fitting NF Slabs in a floor opening and the mesh is being used to help supports the slabs, the wire mesh should be laid into the opening, bending up the sides and fixed with screws, raw plugs and large washers, or split nailing with large washers.

Then lay the slab on top of the mesh adhering all the sides with jointing compound and all cut joints. The whole barrier will dry hard in 10 minutes.

Where cable trays pass through the barrier so Envirograf Intumescent E1/20/30 should be fitted over cables.
