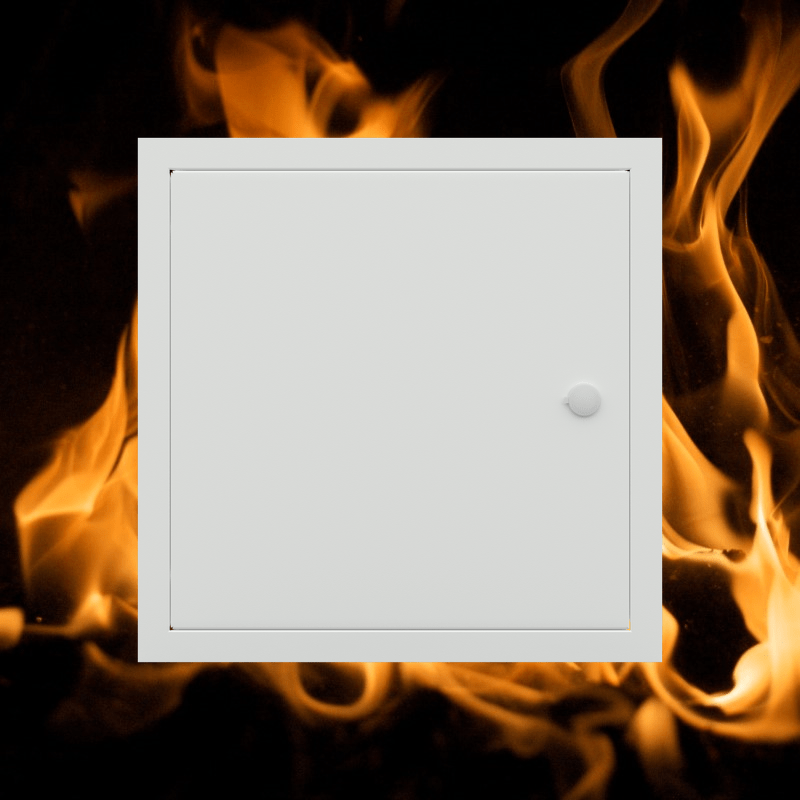

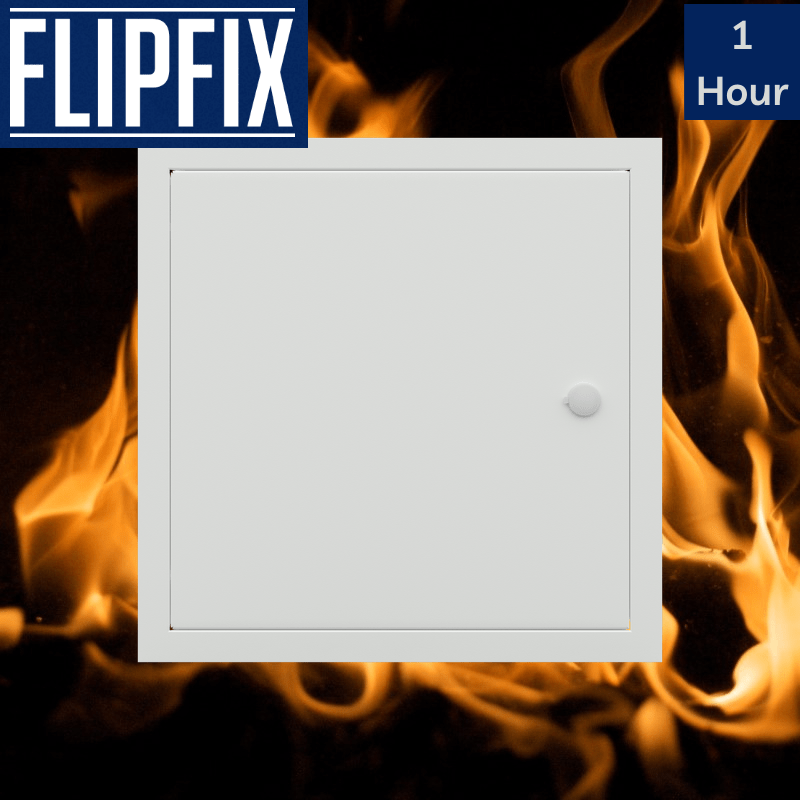

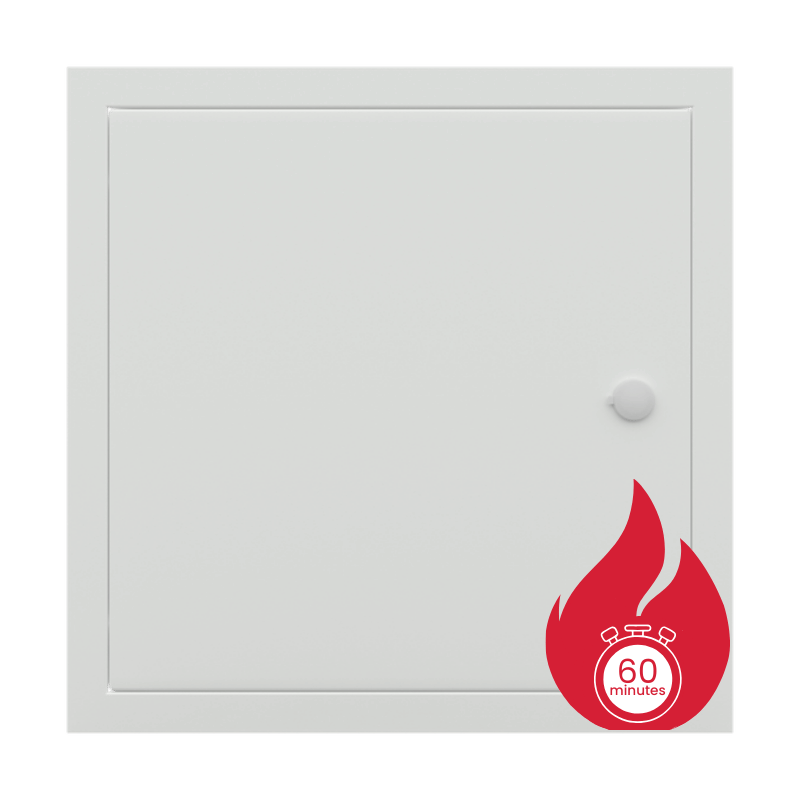

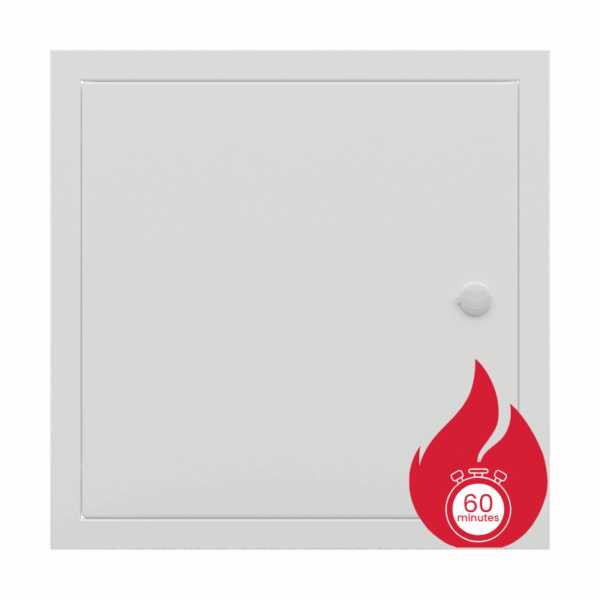

FlipFix Access Panel – Metal Door Picture Frame 1 hour Fire Rated

FlipFix metal door, picture frame, fire rated access panels come with 1 hour rating and a flush bung lock as standard in walls and ceilings.

With the FlipFix fitting device, up to 80% less time is needed to fit these panels in comparison to standard access panels.

A key is provided with the access panel, however we do also supply additional keys if needed. Click here for more information.

What sizes do these access panels come in?

All of our Flipfix access panels come in the following standard sizes (in mm):

150×150

200×200

300×300

450×450

550×550

600×600

600×300 (hinged on the long edge)

Please ensure that your hole size (structural opening size) is 5mm bigger than the access hatch size.

Benefits of Flipfix 1hr fire rated access panels:

• Dual Purpose – Suitable for installation in both walls and ceilings
• Fire Rating – 1 hour
• Acoustic Rating – Coming soon
• Airtight Rating – Not available
• Frame Type – Mitreless Picture Frame (only available on Flipfix)
• Lock Type – Flush bung lock as standard (other locks are available, please phone for a quote)
• Finish – RAL 9010 30% Gloss White (other colours available, please phone for a quote)
• Installation – The unique Flipfix Fitting Device (no need for wood or metal supports, screws or glue). See our video below for installation instructions.
• Supplied with cut out template as standard.
• Saves up to 80% on fitting times
• Ensure that your structural opening size is 5mm greater than the panel size

What is the Flipfix Fitting Device? There is no longer any need for bracings or supports, and no extra screws or glue are required, you simply follow the fitting instructions, close the door and walk away. Saves up to 80% of the time taken to fit an access panel, and up to £25 saving on a 600 x 600 panel.

The FlipFix panel benefits your dry lining service, plumbing and heating engineers, plus electrical and domestic markets.

Removes all additional material costs, e.g. wood, screws and glue.

Flipfix access hatch doors fit board sizes from 32mm to 8mm.

For the Flipfix Metal Door Picture Frame 2 hour fire rated panels, click here. We can also provide bespoke quotes. Click here for more information.

Installing a Flipfix fire rated access panel:
